2 Cavity Automatic PET Blowing Machine Plastic Bottles Jars Making Machine

Name: 2 Cavity Automatic PET Blowing Machine Plastic Bottles Jars Making Machine
Brand: NAVAN MACHINE
Price: 18 USD

China 2 Cavity Automatic PET Blowing Machine Plastic Bottles Jars Making Machine wholesale

Brand Name : NAVAN MACHINE

Model Number : NB-2000

Certification : CE,ISO

Place of Origin : China

MOQ : 1 Set

Price : 18,000-20,000USD

Payment Terms : L/C , T/T / Cash / West Union / MoneyGram

Supply Ability : 15-25 Sets Per Months

Delivery Time : 20-45 Working Days After Receiving Your Deposit Payment

Packaging Details : Wooden Case Package/PE Film Package

Max Container Volume : 2Itr

Clamping Force : 18000kg

Clamping Stroke : 125mm

Stretching Stroke : 450mm

Cavity : 2

Output : 1800-2200BPH@500ml

Main Machine Size : 1950 x1850x2100mm

Total Power : 26kw

Contact Now

2 Cavity Automatic PET Blowing Machine Plastic bottles Jars Making Machine

Full automatic blow molding machine is suitable for producing PETplastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Product parameters:

Model		NB-2000
Molding	Clamping Force kg	18000
	Clamping Stroke mm	125
	Stretching strok mm	450
	Bottom Stroke mm	40/70
	Cavity Spacing mm	120
	Number of Cavity Cavities	2
	Carriage Unit pcs	66
Theoretical Output	bph	1800-2200
Electrical System	Total Power kw	26
	Heating Power kw	16x1.5KW=24
	Number of Lamp Layers Layers	8
Air System	Operating Pressure kg/cm²	7-9
	Low Pressure Air Consumpt Itr/min	1600
	Blowing Pressure kg/cm²	20-30
	High Pressure Air Consumpt Itr/min	1600
Chiller	Operating Pressure kg/cm²	2-4
	Temperature Range ℃	10-12
	Consumption kcal/hr	2000
	Flow Rate Itr/min	130
Main Machine	Main machine dimensions mm(LWH)	1950 x1850x2100
	Main Machine Weight kg	1950
Preform Loader	Preform Loader Dimensions mm(LWH)	2150x1450x2450
	Preform Loader Weight kg	450

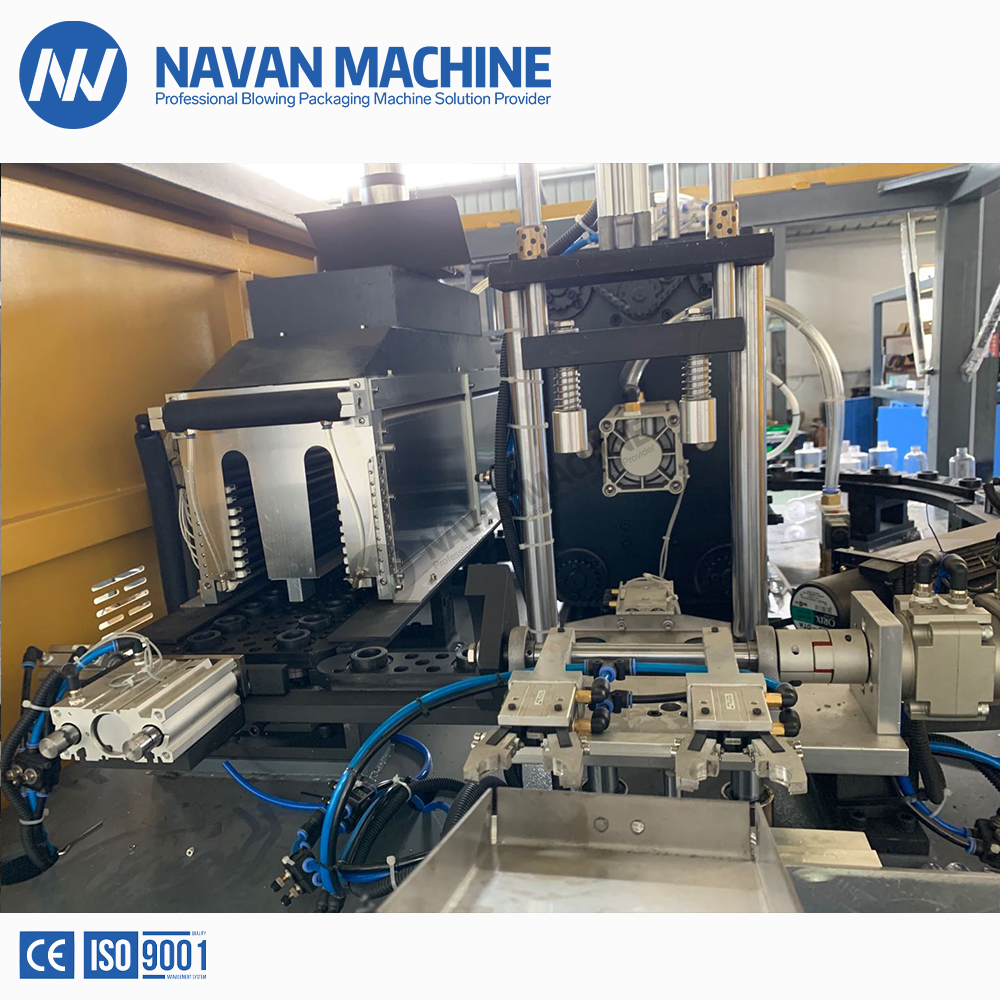

Details Images:

2 Cavity Automatic PET Blowing Machine Plastic Bottles Jars Making Machine

New Auto Preform Unscrambler System.

*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.

New Heating System of 2 cavity automatic PET blowing machine

*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.

Easy To Change Bottle Shape.

*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottle neck diameter.

Servo Technology Innovation On Clamping System & Stretching.

* Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.

Intelligent Human-Machine Interface

*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
